CapCad: Plugin for
Road Signage

Your output in a fraction of the time

Free Trial Schedule a Demo

Road signage from urban detail to motorway scale

CapCad

Complete solution

Carriageway markings, vertical signage and road-safety furniture — covering surveying, design and reporting.
Deliverables library

Deliverables library

Covering presentation styles and technical criteria for major highway authority standards, with fully customisable configurations.

Full training

Full training

Comprehensive CapCad training is 100% available as video lessons and online manual, plus advisory support included in the subscription.
BIM interoperability

BIM interoperability

Compatible with BIM and CAD workflows.

See all features

Trusted by industry leaders

Compatible with a wide range of CAD platforms

Full functionality on every major CAD platform on the market. Your team picks the environment that fits the project, with excellent value compared to the Autodesk ecosystem.

  • AutoCAD
  • BricsCAD
  • GstarCAD
  • ZWCAD
  • Civil 3D

Built on the world's road-signage standards

CapCad's geometry, layouts and styles align with the three umbrella standards families that the world's national road codes derive from — so adapting the toolset to any local highway authority's manual is a matter of configuration, not redevelopment.

  • Vienna Convention on Road Signs and Signals
  • MUTCD
  • Commonwealth Road Signs

For you, with you

CapCad was born and grew through deep interaction with the end user — you — in real project situations. We want to keep an open channel with you: questions, criticism, suggestions, bug reports, modifications to existing commands or entirely new ones — we'll do our best to deliver.

Want to go deeper?

Learn at your own pace and connect with other CapCad users:

🎬

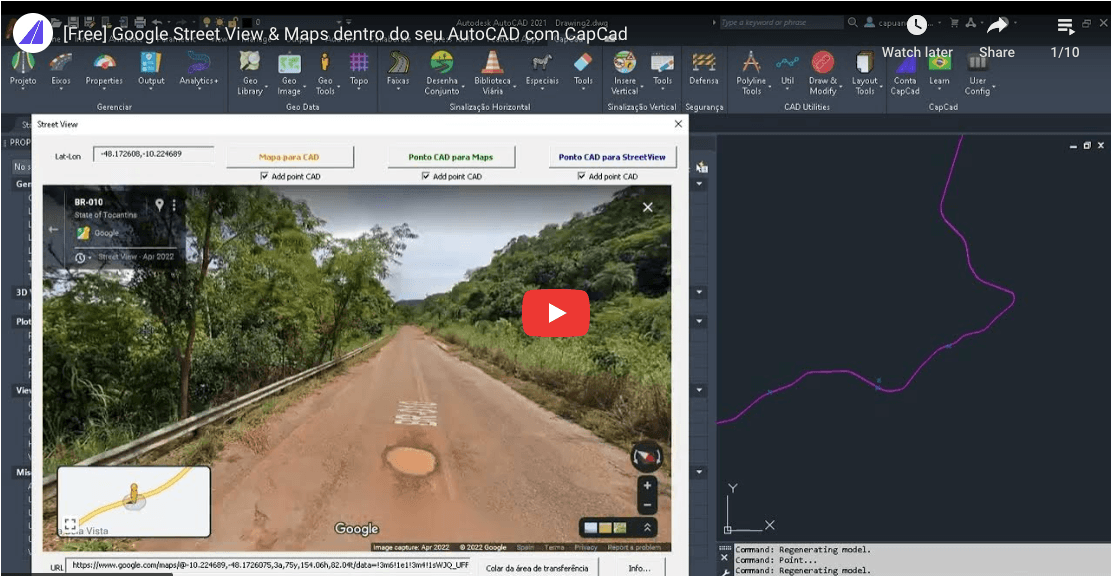

Video training

Up-to-date content to help you master CapCad.

YouTube channel

CapCad: Freedom to design.

Autodesk Authorized Developer

Authorized Developer

Autodesk Developer Network Register Number: 110001788464
